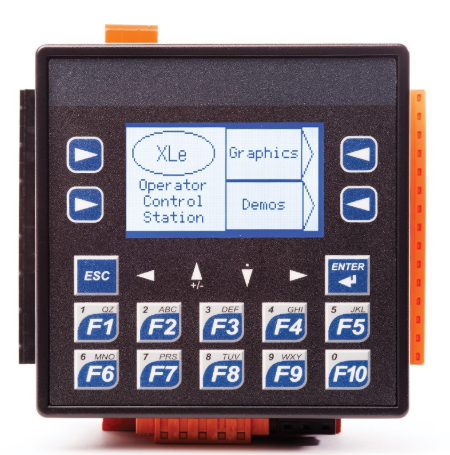

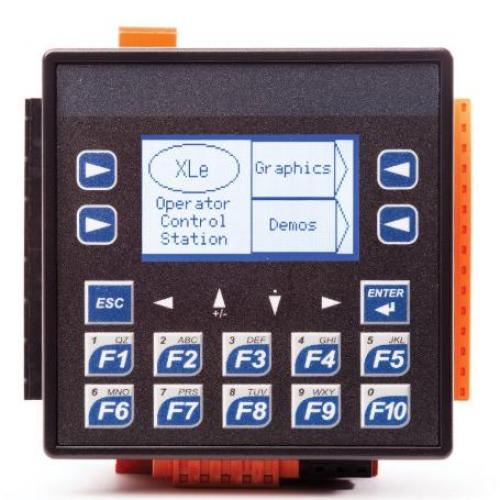

XLe Series OCS with DC/Relay I/O. Twelve (12) Digital Inputs compatible with 12V/24VDC - four (4) inputs can be used for 10kHz High Speed Counting. Six (6) Relay Outputs - up to 5A continuous current. Four (4) 10-bit Analog Inputs selectable between 0-

Product Description

Features of the XLE Operator Interface include:

• 128×64 graphical display
• 20-key keypad with function key and numeric entry capability
• Logic engine features 256KB of application memory with a 0.7mS/K logic scan.
• (2) RS-232/485 ports support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable  protocols
• integrated CsCAN port
• Removable Mass Storage device
• CANopen Master/Slave Support
