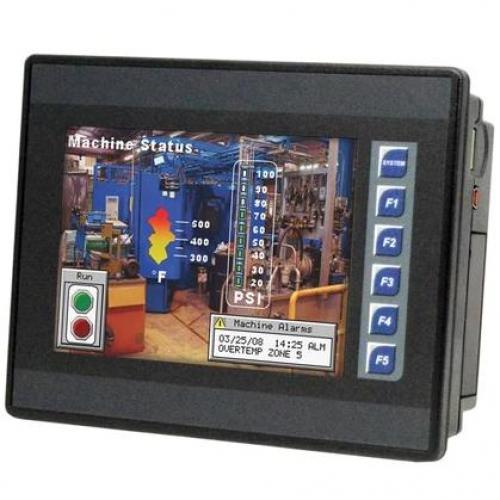

EXL6 Series OCS with DC/DC I/O. Twelve (12) Digital Inputs compatible with 12V/24VDC - four (4) inputs can be used for two 500kHz High Speed Counters. Twelve (12) DC Outputs - 0.5A per point - Two (2) outputs can be used as PWM/pulse outputs. Two (2) 1

Product Description

Description

Logic engine features 1MB of application memory with a 0.013mS/K logic scan. Online Programming Mode (making logic changes on the fly without going thru stop mode) is supported. Operator Interface features include:

• 640×480 LCD TFT color graphics display with a high resolution resistive touchscreen
• 4 function keys and a system key
• USB 2.0 On-the-Go port (mini-B 5pin) is available for programming
• USB 2.0 Host port (A) is available for exchanging files with USB FLASH drives
• Two (2) RS-232 and one (1) RS-485 port support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable protocols

Networking features include:

• Built-in 10/100 Ethernet port
• Integrated CsCAN port

All units feature a microSD slot, supporting at least 32GB. COM option expansion modules are supported, including Profibus DP, 2ch/4ch Analog Output, Radio Modem, Telephone Modem, and GPRS Cellular Modem. The COM options are independent of the serial ports.
